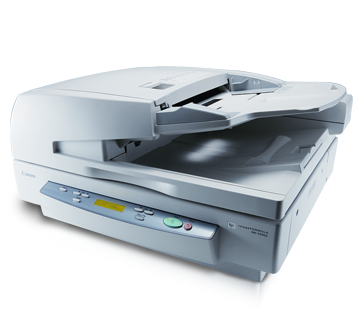

DR 7090C

The ultimate in power, speed and document scanning flexibility


Put the versatile DR 7090C to the test. Built for demanding environments, the high-capacity, high-speed DR 7090C offers 2-way scanning to handle a wider variety of documents with just a simple touch.
  • Connect with USB 2.0 or SCSI-III
  • Speed: up to 70ppm / 88ipm (landscape)
  • Scan size: up to A3

pecifications for DR 7090C


Type Desktop ADF / flatbed scanner
Automation Document Feeder
Document Feeding ADF / flatbed
Document size Width: 139.7mm to 304.8mm
Length: 128mm to 432mm (Normal Mode), 128 to 630mm (Long Document Mode)
Document thickness and weight
Black and white documents (one pass) 0.05mm to 0.15mm, 42 to 128g/m2 (11 to 32lb. bond)
Black and white documents (two pass) 0.07mm to 0.15mm, 50 to 128g/m2 (13 to 32lb. bond)
Black and white / colour documents, mixed 0.07mm to 0.15mm, 50 to 128g/m2 (13 to 32lb. bond)
Colour documents: 0.08mm to 0.15mm, 64 to 128g/m2 (17 to 32lb. bond)
Scanning Element 3-line CMOS contact image sensor (back), CCD (front)
Light Source Xenon lamp
Scanning Side Simplex, Duplex, Flatbed, Auto
Scanning Modes Black and White, Error Diffusion, Advanced Text Enhancement II, 256-level Grayscale, 24-bit Colour
Scanning Resolutions 100 x 100dpi, 150 x 150dpi, 200 x 200dpi, 240 x 240dpi, 300 x 300dpi,
400 x 400dpi, 600 x 600dpi
Scanning speed*1 (A4 / LTR, Landscape, 200 / 300dpi)
Black and White Simplex: 70ppm
Duplex: 88ipm
256-level Grayscale Simplex: 70ppm
Duplex: 88ipm
Colour Simplex: 70ppm
Duplex: 88ipm
Feeding capacity Max. 100 sheets (80g/m2) or stack 13mm or less
Interfaces SCSI-III / Hi-Speed USB 2.0
Included Software ISIS / TWAIN driver, Job Registration Tool, CapturePerfect
Useful functions Count Only Mode, Automatic Page Size Detection, Deskew, Punch Hole Removal, Skip Blank Page, Colour Dropout / Enhance Colour, Text Orientation Recognition, Batch Separation
Power requirements AC100V 50 / 60Hz, AC120V 60Hz, AC220 - 240V 50 / 60Hz
Power Consumption 100V: Operating: 222W
Sleep mode: 6.2W
120V: Operating: 218W
Sleep mode: 6.3W
220 - 240V: Operating: 210W
Sleep mode: 6.4W
Operating Environment Temperature: 15°C to 30°C (59°F to 86°F)
Humidity: 25% to 80% RH
Dimensions (W x D x H) 618 x 602 x 317mm (24.3 x 23.7 x 12.5in.)
Weight Approx. 41kg (9lb.)
Options / Consumables Exchange Roller Kit, Stamp Unit B1, Stamp Cartridge C1, Glass Cleaning Paper (Cleaning Cloth A1)

Specifications are subject to change without notice.

Actual scanning speed may vary depending on your system configuration and PC.

*1 When scanning documents using ADF.
