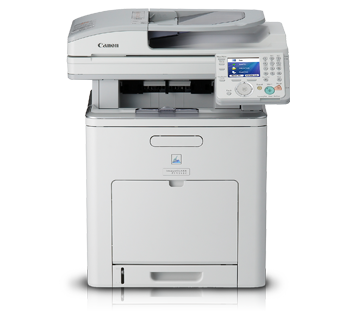

imageCLASS MF9340C

The ultimate business colour multi-tasker that inspires


The imageCLASS MF9340C is your elegant one-touch intelligent business solution. With a massive 768MB RAM memory, smart user functions and quick print and copy productivity, it’s at the top of its class.
  • Colour laser copier, printer, fax and scanner with send function
  • Print speed (A4): up to 21ppm
  • Media: A4, Letter and more

Specifications for imageCLASS MF9340C

Machine Type Colour Laser Multifunction Printer
Available Functions Print, Copy, Scan (fax option)
Printer
Print Speed Up to 21ppm colour and mono (A4)
Printing Method Indirect electrostatic method (Colour RAPID Fusing)
Print Quality Up to 2400 x 600dpi with Automatic Image Refinement
Print Resolution 600 x 600dpi
Double Sided Printing Automatic
Printer Languages UFRII-LT (PCL5c / 6 Optional)
Print Margins 5mm - top, bottom, left and right
Toner Saver Mode Yes
Media Direct Print
Media Type USB Flash Memory, Memory Card (CompactFlash ®, Microdrive, Memory Stick®, Memory Stick Pro™, SD Memory Card ®, Memory Stick Duo™*1, Memory Stick PRO Duo™*1, Memory Stick Micro™*1, miniSD Card™*1, microSD Card™*1)
Image Format BW: TIFF
CLR: JPEG
File System FAT16, FAT32
Layout Print 2-on-1, 4-on-1 (JPEG only)
Index Print 20 images (A4 / LTR), 24 images (LGL) (JPEG only)
Copier
Copy Speed Up to 21cpm colour and mono (A4)
First Copy Output Time (FCOT) Platen: < 13secs.
ADF: < 19secs.
Copy Resolution Up to 600 x 600dpi
Copy Modes Text / Photo / Map (default), Printed Image, Photo, Text
Double Sided Copying 2-sided to 2-sided (automatic)
Multiple Copy Up to 99 copies
Reduction / Enlargement 50 - 200% in 1% increments
Toner Saver Mode Yes
Other Features Booklet, Frame Erase, Auto Collate, ID Card Copy, 2-on-1, 4-on-1, Mode Memory setting (4 Favourite Setting)
Scanner
Type Colour, Greyscale & BW
Scan Method CCD
Scan Resolution Optical: Up to 600 x 600dpi
Enhanced: Up to 9600dpi
Colour Scanning Depth 24 bits / 24 bits (input / output)
Greyscales 256 levels
Compatibility TWAIN*2, WIA*1*2
Max. Scan Width 216mm
Scan Software Colour Network ScanGear
Send Functions
Network Protocols TCP/IP (LPD / RAW(Port9100))
Scan to File Server FTP, SMB (TCP/IP)
Scan to E-mail and i-Fax SMTP, POP3, i-Fax (Simple mode)
Scan to USB Flash Memory Yes
File Formats TIFF, JPEG, PDF, PDF (compact)
NOTE: Scan to Colour Multi-page PDF file format can be done via both Auto Document Feeder (ADF) and Platen glass by SEND function; and via ADF only if Network ScanGear and Scan-to-USB Memory is used.
Other Features Mode Memory setting (4 Favourite Setting)
FAX (with Optional Fax Board AB-1 installed)
Modem Speed Super G3 33.6kbps (Up to 3secs./page*3)
Receive Mode Fax only, Fax / Tel Auto Switch, Answer Mode, Manual RX
Fax Resolution 200 x 100dpi: 8pels/mm x 3.85lines/mm
200 x 200dpi: 8pels/mm x 7.7lines/mm
200 x 400dpi: 8pels/mm x 7.7lines/mm
400 x 400dpi: 16pels/mm x 15.4lines/mm
FAX Memory Up to 1,000 pages*4
Speed Dialling One-touch: 200 destinations
Group dialling: 299 destinations
Others: Address Book Dial, Regular dial, Redial (auto / manual), Auto Reception Reduction
Sequential Broadcasting Maximum: 301 destinations
From Address Book: 300 destinations
Manual dialling: 1 destination
Memory Backup 1 hour
Double Sided Faxing Yes (transmit and receive)
Other Features Auto Fax Forwarding to PCs / Email / Server, Dual Access, Remote Reception, PC Fax
Media Handling
Scanner Type Flatbed and Duplex Automatic Document Feeder (DADF)
Paper Input (Standard) 250-sheet cassette
100-sheet multi-purpose tray
Auto Document Feeder 50-sheet (Duplex ADF)
Paper Input (Option) 500-sheet cassette (pedestal with wheels)
Paper Output 250-sheet
Media Types Plain paper, Recycled paper, Heavy paper, Transparency, Label, Envelope
Media Sizes Cassette and optional pedestal: A4, A5, B5, Legal, Letter, Executive
Multi-purpose tray: A4, A5, B5, Legal, Letter, Executive, Statement, Envelope (COM10, Monarch, DL, ISO-C5, ISO-B5)
Custom sizes: Width 76.2 to 215.9mm; Length 127.0 to 355.6mm.
DADF: One-sided scanning: A4, A5, B5, Legal, Letter,
Custom sizes ( W x L: Max. 215.9 x 355.6mm Min. 128 x 139.7mm)
Two-sided scanning: A4, Legal, Letter
Media Weights Cassette and optional pedestal: 60 to 120g/m²
Multi-purpose tray: 60 to 176g/m²
DADF: One-sided scanning: 50 to 105g/m²,
Two-sided scanning: 64 to 105g/m²
Interface / Software
Interface Type USB 2.0 Hi-Speed, 10BASE-T / 100BASE-TX, 2 x USB memory slot, Ethernet (100Base-TX / 10Base-T), for New Card Reader (E-1, TTL Serial I/F)
Operating System Compatibility Windows 2000 / Server 2003 / Server 2008 / XP / Vista
Mac OS X version 10.2.8 - 10.5.x*5*6
Linux*5*7
Software and Printer Management NetSpot Device Installer, Remote User Interface (RUI), Department ID Management (100 IDs)
General Features
Duty Cycle Max. 65,000 pages per month
Warm-up Time Approx. 60 seconds from power on
CPU Canon Custom Processor 400MHz
Memory 768MB (shared)
Control Panel 3.5 inches colour TFT display with Easy Scroll-Wheel
Dimensions with Trays (W x D x H) 546 x 527 x 632mm
Installation Space (W x D x H) 546 x 1140 x 792mm
546 x 1140 x 1095mm (with optional Cassette Feeding Unit-AB1 attached)
Weight Approx 44kg
Operating Environment Temperature: 10 to 30°C (50 to 86°F)
Humidity: 10 to 80% RH (no condensation)
Power Source 210 - 240V (±10%) 50 / 60Hz (±2Hz)
Power Consumption Max: < 1350W
Sleep mode: 16W (with active connected PCs)
Min Sleep mode: 1.2W (when PCs not active)
Consumables
Cartridge Cartridge NPG-41 Black (6,000 pages)*8
Cartridge NPG-41 Cyan (6,000 pages)*8
Cartridge NPG-41 Magenta (6,000 pages)*8
Cartridge NPG-41 Yellow (6,000 pages)*8

All specifications subject to change without notice.

*1 Web distribution only.
*2 Scan to computer via USB connection is not supported.
*3 Based on ITU-T Standard Chart No. 1.
*4 Based on ITU-T Standard Chart No. 1.
*5 Web distribution only.
*6 Scanning is not supported.
*7 English print driver only.
*8 Based on 5% coverage.
